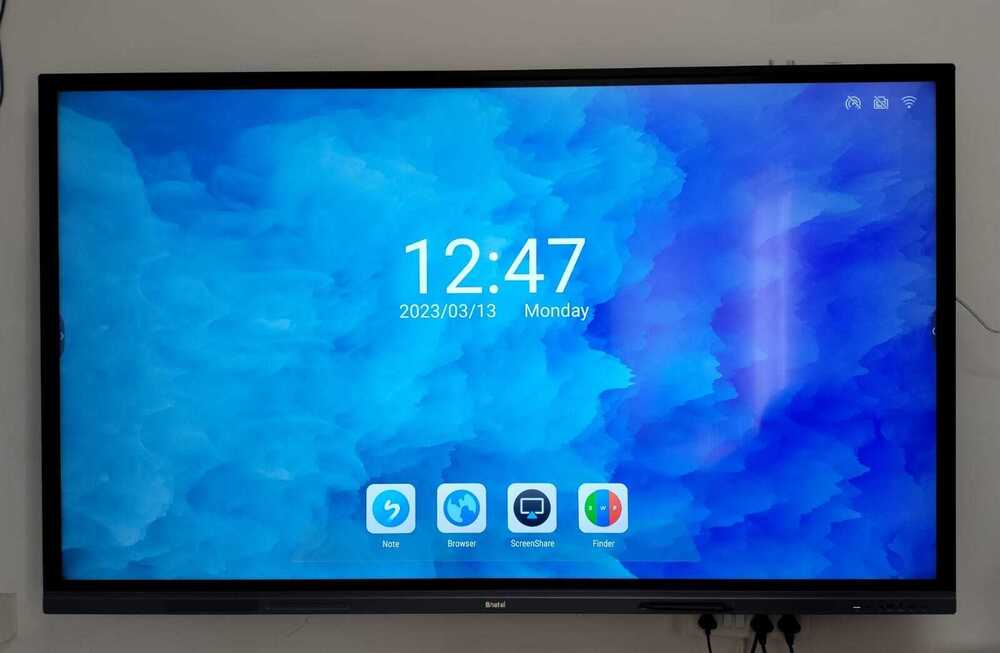

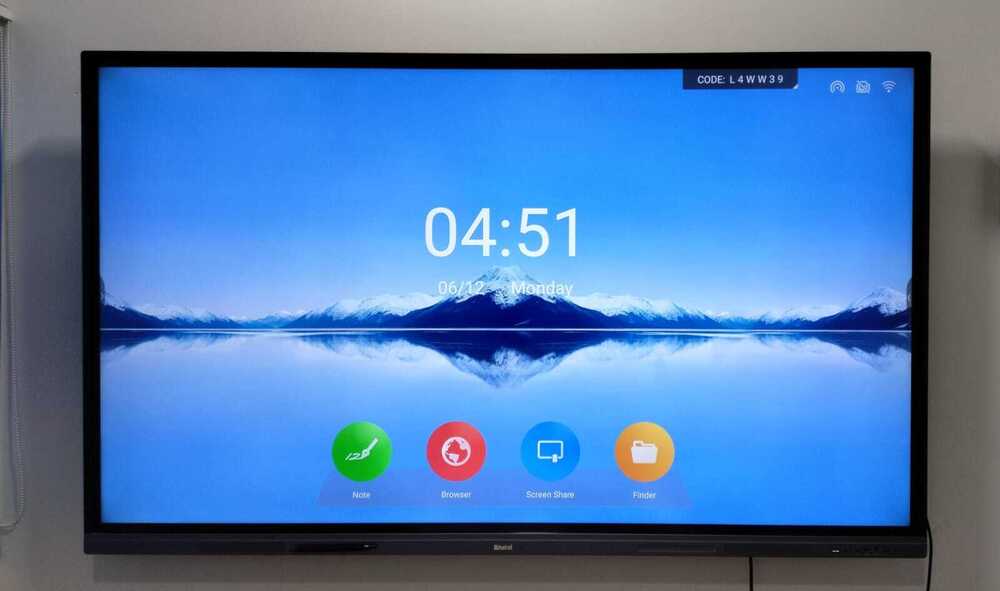

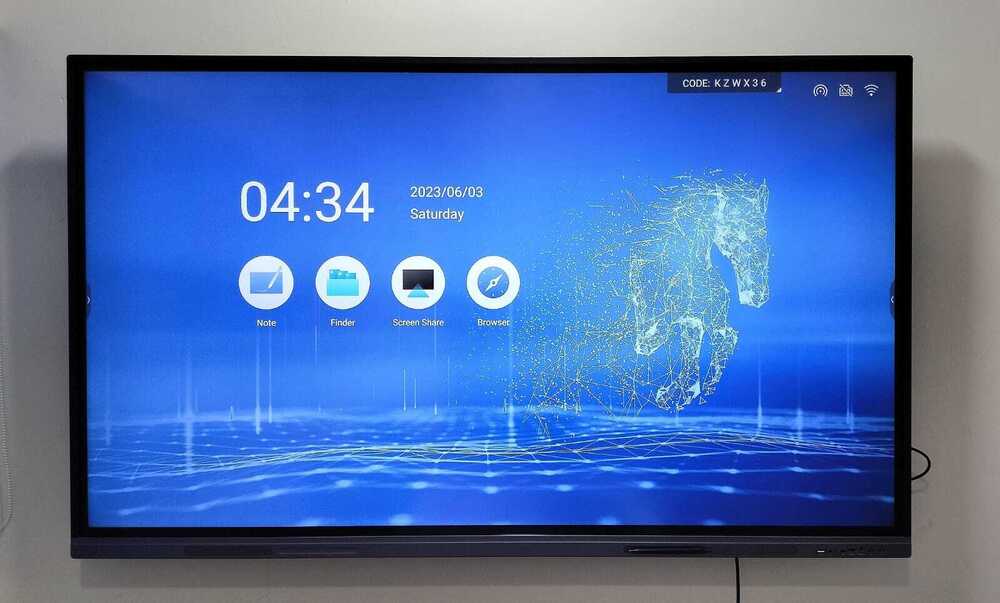

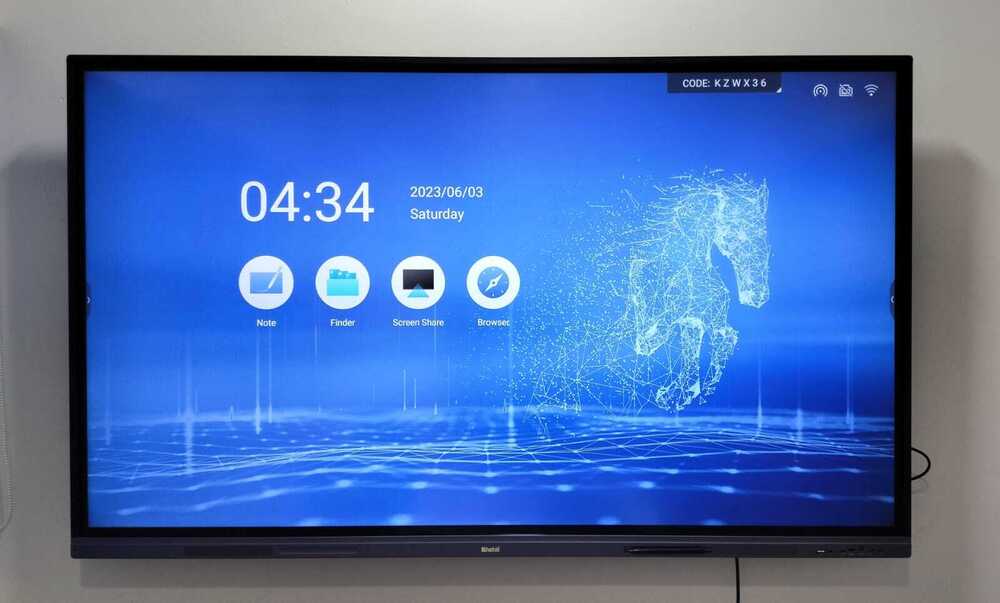

Bhatai 75" Interactive Flat Panel

Name: Bhatai 75" Interactive Flat Panel
Brand: BHATAI AUTOMATION (OPC) PVT.LTD
Price: 98000.0 INR
Availability: InStock

Price 98000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Bhatai 75" Interactive Flat Panel Specification

Features
Long Life

Use
Education,Corporate

Size
75 Inch

Model No
ARYA-75

Weight
62 Kilograms (kg)

Surface Finish
Smooth

Type
Teacher Reference

Material
Metal

Dimensions
1735.05x1047.32x111.065 Meter (m)

Shape
Rectangular

Color
Black

Function
AI Enable

Age
60000 Hrs

Advantage
High Quality

Bhatai 75" Interactive Flat Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Bhatai 75" Interactive Flat Panel

Model	ARYA-65A	ARYA-75A	ARYA-86A
Active Screen Size	65"	75"	86"
Backlight	DLED
Display Area (mm)	1428.48 (H) x 803.52 (V)	1649.664(H)927.936(V)	1895.04(H)1065.96(V)
Display Ratio	16:9
Resolution	3840 x 2160
Display Refresh Rate	60Hz
Colors	1.07G (8bits + FRC )
Brightness Center With Glass (Min)	Min 400 cd/m Typical 450 cd/m2
Contrast (Typical)	4000:1	4000:1	4000:1
Response Time (Typical)	4ms	4ms	4ms
Viewing Angle (Typical)	H = 178, V = 178
Display Life Time (MTBF)	50000 hours
Glass Surface Technology
Anti-Glare	YES
Anti-Fingerprint	YES
Touch Surface Hardness	8H
Transparency	88%
Dynamic Coefficient of friction	0.9
Haze	48
Touch Technology
IR Touch technology	IR
Sensor XY Precision	32767*32767
Touch Windows & Android Points	40
Response time (ms)	3.3ms
recognizable pen	YES
recognizable Finger	YES
recognizable Palm	YES
Stero Speaker
Speaker Position	Bottom Down
Speaker Rated Impedance	6
Speaker Freq.Respons	28020K Hz S.P.L.-10dB
Speaker Rated Power Output	20W*2
Network Module
WIFI	WiFi6
Bluetooth	BT5.2
Ethernet		Yes
Pluggable Structure		Yes
Smart System
CPU	A73*4
GPU	G52
RAM	8 GB
ROM	64 GB
External Memory	64 GB
UI Resolution	4K
Android Version	Android 14
Front Control Panel
Key Buttons	5* button: Power/Custom/Back/HomeMenu/
IR Remote Sensor	YES
Ambient Light Sensor	YES
Lamp Status	Standby Mode:red light ,Working Mode: white light
Front I/O
Type-C (Full/PD-65W)	1
HDMI IN 2.0	1
TOUCH USB2.0-B	1
USB 3.0-A Host Public	2
Microphone In (Line in)	1
Rear I/O
HDMI 2.0 in	1
USB2.0 Type-C	1
USB2.0 Type-C for Camera (Top)	1
USB 3.0-A to SOC	1
USB 2.0-A Host Public	1
TOUCH USB 2.0-B Device	1
VGA in	1
PC Audio in	1
RS232-DB9	1
Audio Line Out	1
SPDIF out	1
RJ45 (10/100/1000M)	2
OPS Slot (4K@60Hz)	1
Accessories
USB2.0 A-B Cable 3m	1
HDMI 2.0 Cable 3m	1
AC Power Cabel 2m	1
3&10mm Dubble Poits Pens	2
Simple Remote Controller	1
AAA Alkaline Battery	2
Electrical Parameter
AC Input	C14 Male with Swich Connector,AC100-240V Max 10A
Working Voltage	AC100-240V Max 3.5A	AC100-240V Max 3.4A	AC100-240V Max 4.5A
Power Consumption (Eco mode)	295W	286W	386W
Power Consumption ( full load)	325W	315W	425W
Power Consumption (Standby mode)	0.5W
Mechanical
VESA mounting (mm)	600*400	800*400	800*400
Regulatory and Compliance
FCC	YES
CE	YES
ERP	YES
Energy Saving(EEI)	YES
CB	YES
3C	YES
SRRC	YES
Transportation / Storage
Working Temperature/Humidity	040C 2080%RH (non-condensing)
Storage Temperature/Humidity	-1045C 2090%RH (non-condensing)
Outline Dimension(without wall mount) (mm)	1512.9x922.83x109.865	1735.05x1047.32x111.065	1981.04x1186.05x111.065
Packing Dimension (mm)	1640 x 208 x 1036	1859 x 227 x 1160	2119 x 250 x 1290
Net Weight (kg)	37	50	61.5
Gross Weight (kg)	46.5	62	77.5

Exceptional Durability and Finish

Engineered with long life in mind, this smart panel utilizes superior materials and a smooth surface finish to withstand daily commercial usage. The robust plastic construction ensures resistance to wear and tear, maintaining its elegant appearance over extended periods.

Optimal Size for Commercial Spaces

Measuring 75 inches, this interactive panel offers expansive viewing and interaction for large meeting rooms and classrooms. Its rectangular shape is specifically designed to fit seamlessly into professional environments, facilitating collaborative work and dynamic presentations.

FAQs of Smart Interactive Flat Panel:

Q: How does the Smart Interactive Flat Panel ensure long-lasting performance for commercial use?

A: The panel is built with high-quality plastic material and a smooth surface finish, providing both durability and resilience. This construction ensures it withstands regular commercial usage, maintaining its performance and appearance over time.

Q: What benefits does the 75-inch size offer in professional settings?

A: The expansive 75-inch screen provides excellent visibility, making it ideal for large meeting rooms and classrooms. Its size enhances collaborative work, allowing multiple users to interact simultaneously and maximizing engagement during presentations.

Q: When should businesses consider installing a Smart Interactive Flat Panel?

A: Businesses should consider installing this panel when they require an advanced solution for interactive presentations, remote collaboration, and engaging communication in environments such as corporate boardrooms, educational institutions, or training centers.

Q: Where can the Smart Interactive Flat Panel be sourced in India?

A: This panel is manufactured and supplied across India, available directly through authorized manufacturers and suppliers specializing in commercial display solutions.

Q: What processes are involved in maintaining the panels surface quality?

A: Routine cleaning with a soft, lint-free cloth is recommended to maintain the smooth surface. As the material is plastic, avoid abrasive or harsh chemicals that could damage the finish. Regular maintenance helps preserve its clarity and touch responsiveness.

Q: How can users maximize the commercial advantages of the panel?

A: Users can leverage its high-quality build and interactive features to conduct dynamic presentations, facilitate workshops, and enhance collaborative tasks, thereby improving productivity and audience engagement.

Q: What distinguishes this panel as a high-quality commercial display solution?

A: Its combination of advanced interactive technology, durable plastic construction, smooth surface, and expert manufacturing in India ensures exceptional reliability and performance for demanding professional applications.
